Stainless Steel Series XR, Wheel DG
  • Swivel Castor Stainless Steel Series XR, Wheel DG

    SWIVEL CASTOR

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel DG

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XR, Wheel DGEdelstahl

PDF product sheet
  • max 230 kg
  • -20 °C - +60 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof

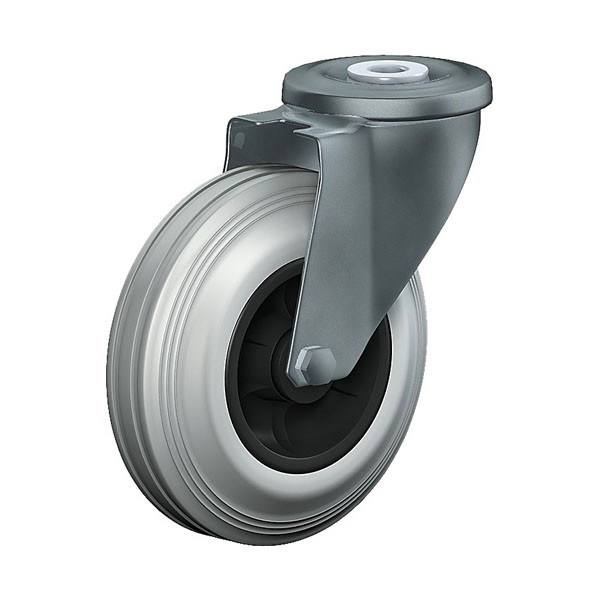

  • Swivel Castor Stainless Steel Series XR, Wheel DG

    Swivel Castor

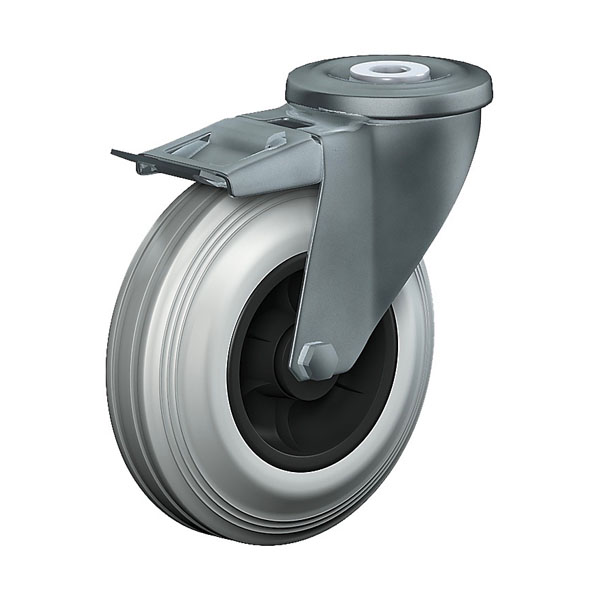

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel DG

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • non-marking – floor protective
  • excellent running performance
  • very silent in motion
  • low rolling resistance
  • good abrasion resistance

Applications

  • Mechatronik
  • Wet environments

Material

Material

Elastic solid rubber tyre, grey, 75±5 Shore A

Quality nylon wheel centre, black

Fork material

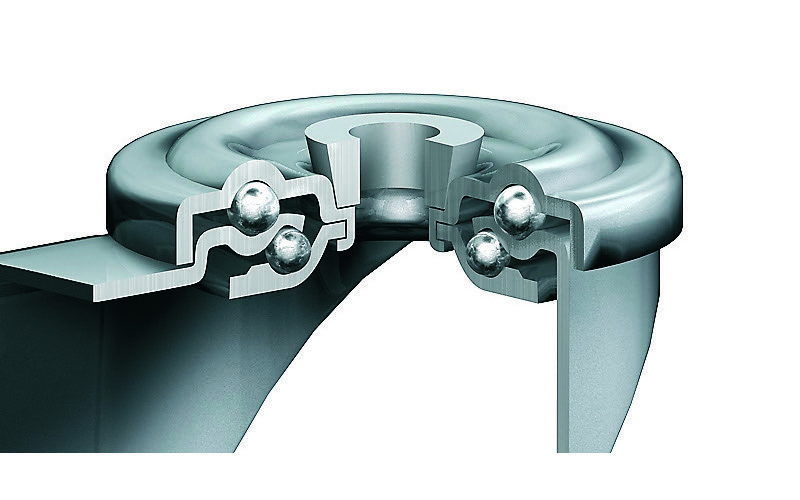

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

20 of 20 items in this series are displayed.

Article number Articel type Price € QTY
XR 80 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 75
  • Radlagerung Roller bearing
XRT 80 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XR 80 DG

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 75
  • Radlagerung Nylon plain bearing
XRT 80 DG

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 55
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XR 100 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Roller bearing
XRT 100 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XR 100 DG

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Nylon plain bearing
XRT 100 DG

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 85
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing

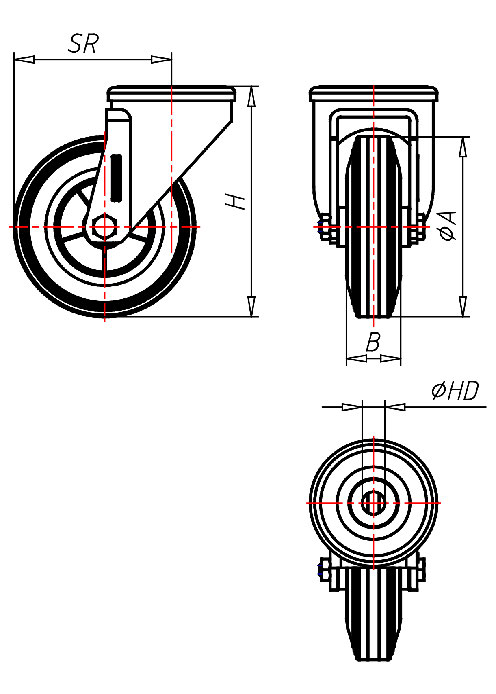

XR 125 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 104
  • Radlagerung Roller bearing
XRT 125 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XR 125 DG

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 104
  • Radlagerung Nylon plain bearing
XRT 125 DG

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 110
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XR 150 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 128
  • Radlagerung Roller bearing
XRT 150 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XR 150 DG

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 128
  • Radlagerung Nylon plain bearing
XRT 150 DG

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 150
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XR 200 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Roller bearing
XRT 200 DGBX

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Roller bearing
XR 200 DG

Stainless Steel Series XR, Wheel DG

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Nylon plain bearing

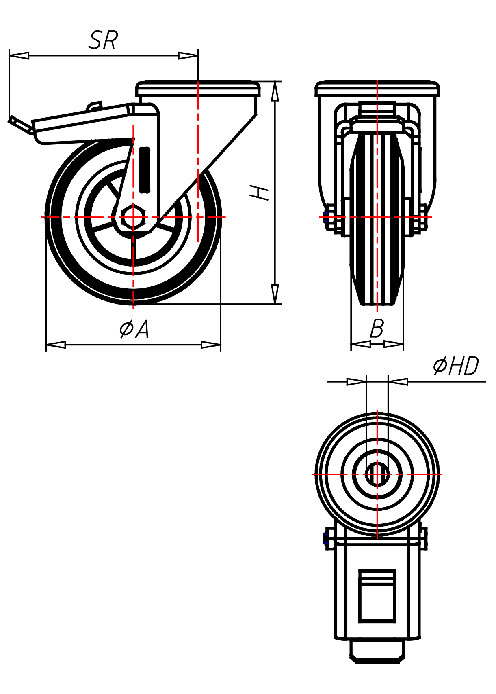

XRT 200 DG

Stainless Steel Series XR, Wheel DG

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel DG

Technische Daten

  • Tragkraft kg 230
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Nylon plain bearing
