Stainless Steel Series XR, Wheel D

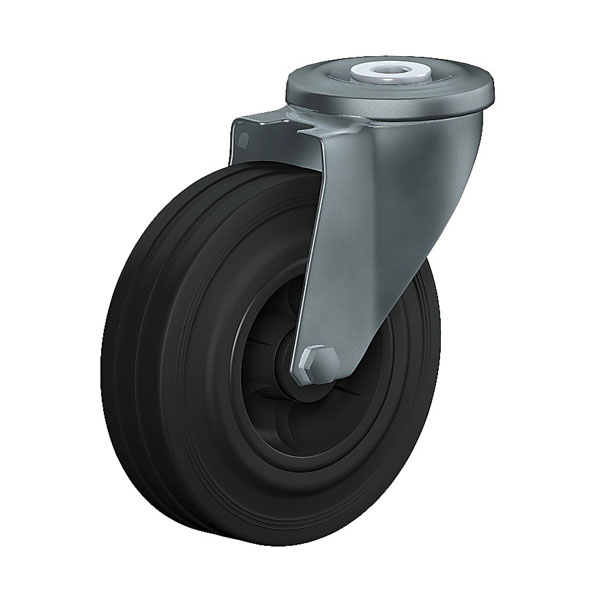

  • Swivel Castor Stainless Steel Series XR, Wheel D

    SWIVEL CASTOR

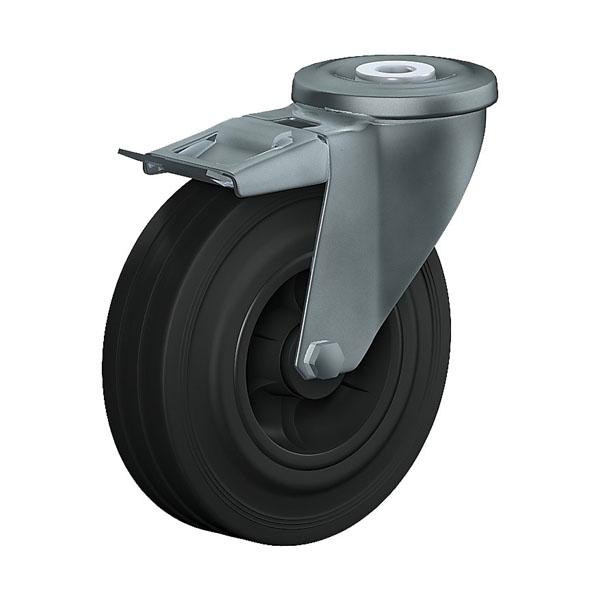

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel D

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XR, Wheel DEdelstahl

PDF product sheet
  • max 205 kg
  • -20 °C - +60 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Stainless Steel Series XR, Wheel D

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel D

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Hindernisse am Boden

    Obstacles

Advantages

  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Wet environments

Material

Material

Tread: standard rubber tyre black, 85±5 Shore A


Quality nylon wheel centre

Fork material

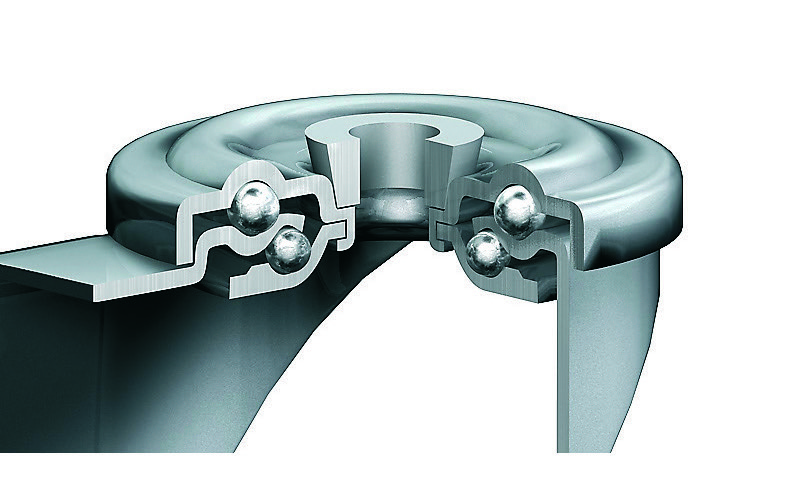

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

10 of 10 items in this series are displayed.

Article number Articel type Price € QTY
XR 80 D

Stainless Steel Series XR, Wheel D

Swivel castor Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 75
  • Radlagerung Nylon plain bearing
XRT 80 D

Stainless Steel Series XR, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 80x30

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XR 100 D

Stainless Steel Series XR, Wheel D

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Nylon plain bearing
XRT 100 D

Stainless Steel Series XR, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 75
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing

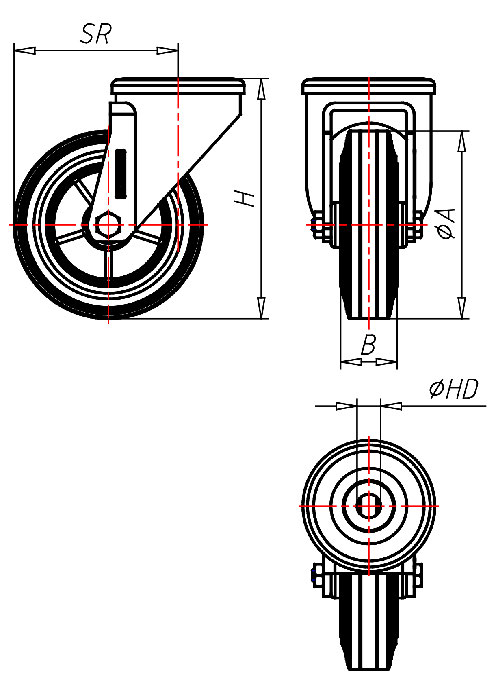

XR 125 D

Stainless Steel Series XR, Wheel D

Swivel castor Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 104
  • Radlagerung Nylon plain bearing
XRT 125 D

Stainless Steel Series XR, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 90
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Nylon plain bearing
XR 150 D

Stainless Steel Series XR, Wheel D

Swivel castor Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 128
  • Radlagerung Nylon plain bearing
XRT 150 D

Stainless Steel Series XR, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 150x40

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 125
  • Bauhöhe H mm 181
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Nylon plain bearing
XR 200 D

Stainless Steel Series XR, Wheel D

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Nylon plain bearing

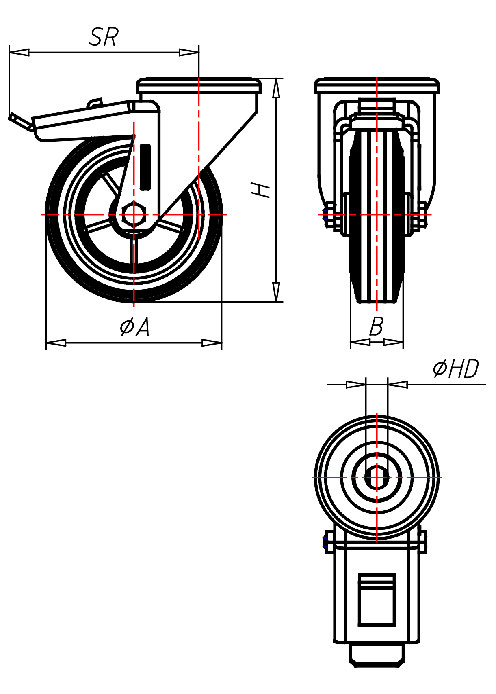

XRT 200 D

Stainless Steel Series XR, Wheel D

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel D

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Nylon plain bearing
