Stainless Steel Series XR, Wheel AEL

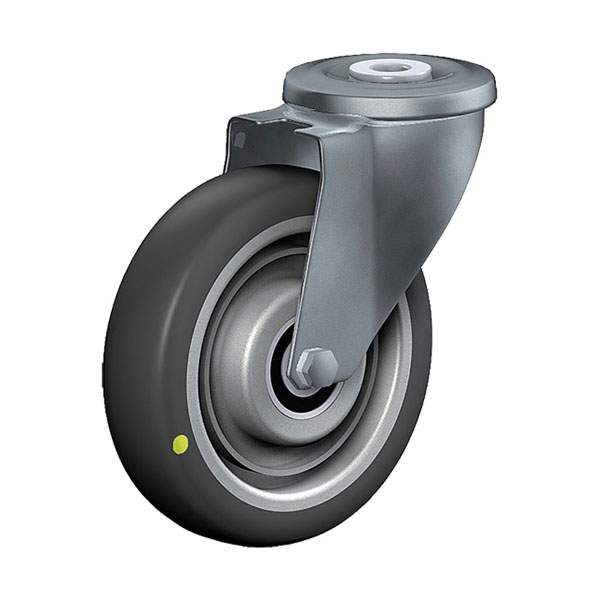

  • Swivel Castor Stainless Steel Series XR, Wheel AEL

    SWIVEL CASTOR

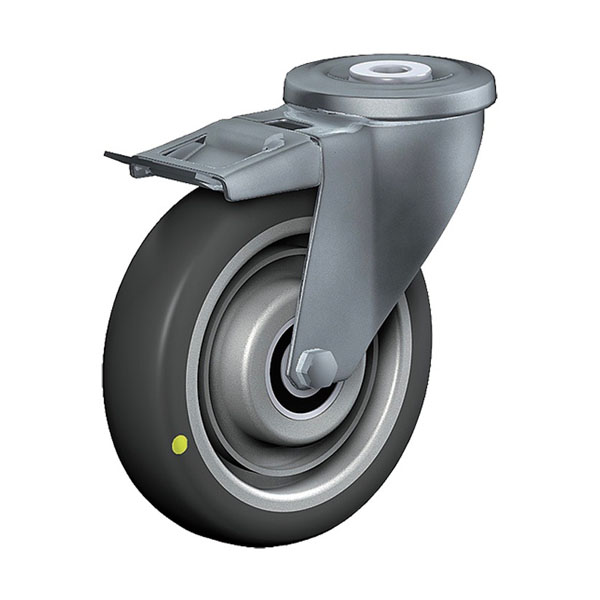

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel AEL

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XR, Wheel AELEdelstahlelectrically conductive

PDF product sheet
  • max 300 kg
  • -20 °C - +70 °C
  • 80-200 mm
  • ++
    swivels easily
  • +++
    wear resistant
  • ++
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series XR, Wheel AEL

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel AEL

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • electrically conductive
  • silent in motion
  • low rolling resistance
  • non-marking
  • high resistance to shocks
  • good chemical resistance

Applications

  • Mechatronik
  • Wet environments

Material

Material

coated in polyurethane, 90±3 Shore A elecrically conductive <104Ω
High quality nylon wheel centre

Fork material

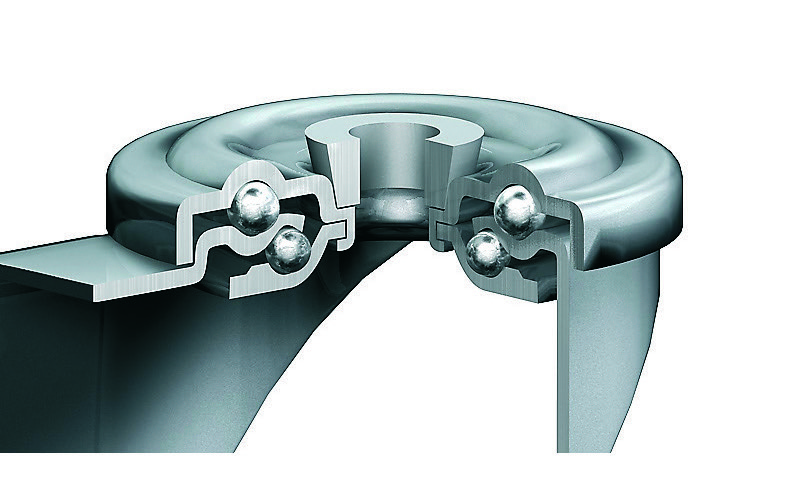

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

12 of 12 items in this series are displayed.

Article number Articel type Price € QTY

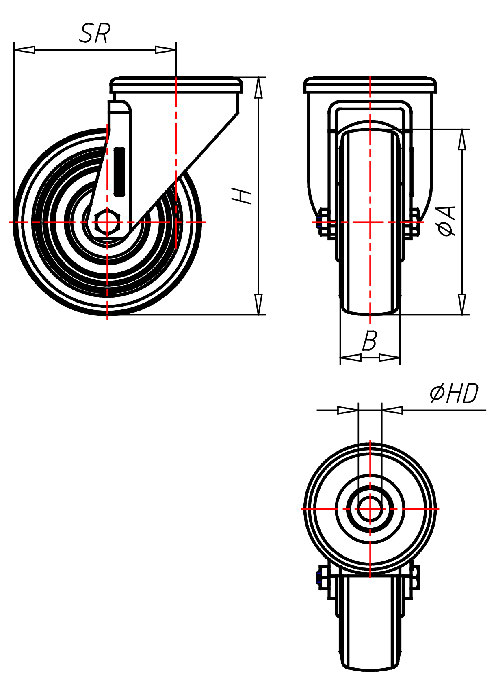

XR 80 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 80x32

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 75
  • Radlagerung Ball bearing
XRT 80 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 80x32

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Ball bearing
XR 100 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Ball bearing
XRT 100 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Ball bearing
XRS 100 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 200
  • Bauhöhe H mm 129
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 98
  • Radlagerung Ball bearing
XRST 100 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x32

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 200
  • Bauhöhe H mm 129
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Ball bearing
XR 125 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 125x32

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 104
  • Radlagerung Ball bearing

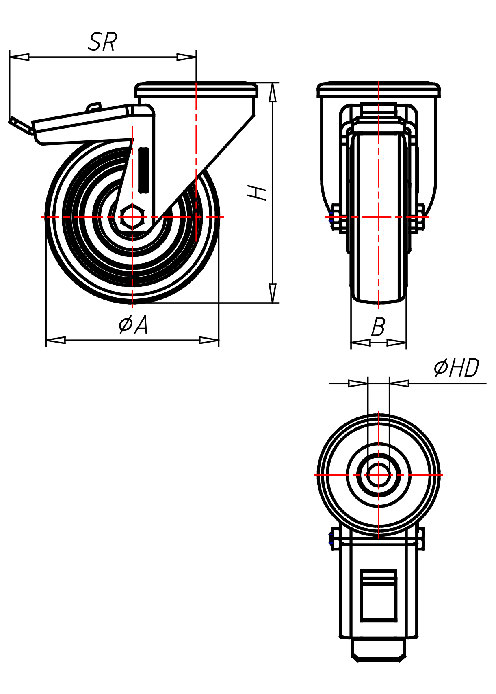

XRT 125 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x32

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 120
  • Bauhöhe H mm 154
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Ball bearing
XRS 125 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 125x46

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 200
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 114
  • Radlagerung Ball bearing
XRST 125 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x46

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 200
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Ball bearing
XR 200 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Ball bearing
XRT 200 AELK

Stainless Steel Series XR, Wheel AEL

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel AEL

Technische Daten

  • Tragkraft kg 300
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Ball bearing

Suitable accessories
