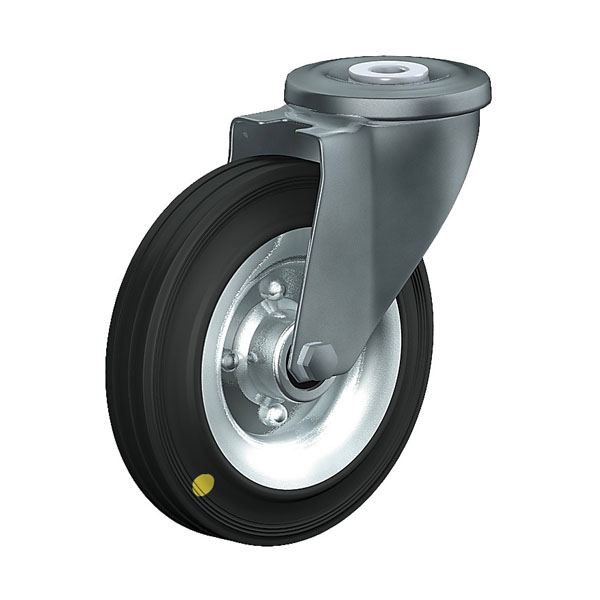

Stainless Steel Series XR, Wheel EL
  • Swivel Castor Stainless Steel Series XR, Wheel EL

    SWIVEL CASTOR

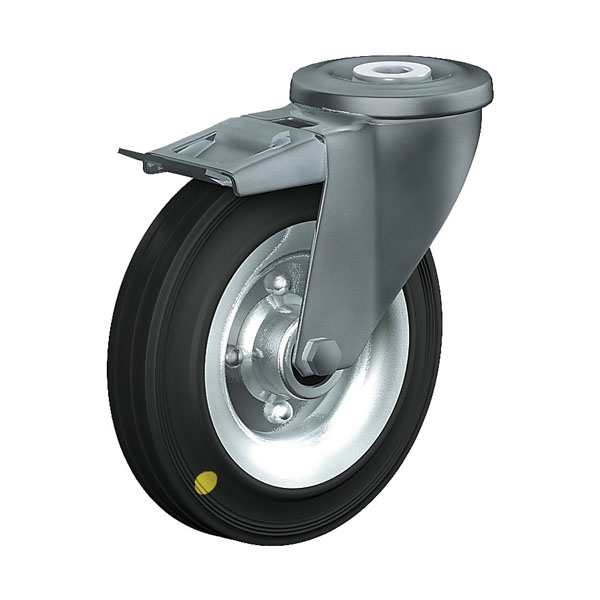

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel EL

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series XR, Wheel ELEdelstahlelectrically conductive

PDF product sheet
  • max 205 kg
  • -20 °C - +60 °C
  • 80-200 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • ++
    shock proof
  • ++
    floor protective
  • ++
    weather proof
  • Swivel Castor Stainless Steel Series XR, Wheel EL

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series XR, Wheel EL

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Asphaltboden

    Asphalt

  • Hindernisse am Boden

    Obstacles

Advantages

  • electrically conductive
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Wet environments

Material

Material

rubber tyre, electrically
conductive, volume resistance value <104Ω
bolte stainless steel rim, volume resistance value <104Ω

Fork material

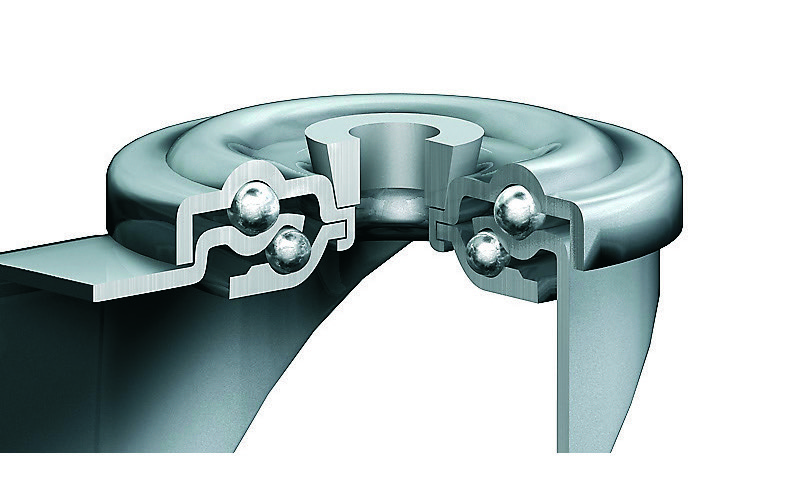

Finish: Polished stainless steel swivel fork AISI 304, stainless steel balls AISI 420, double ball bearing – revited, wheel axle bolted, total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

8 of 8 items in this series are displayed.

Article number Articel type Price € QTY

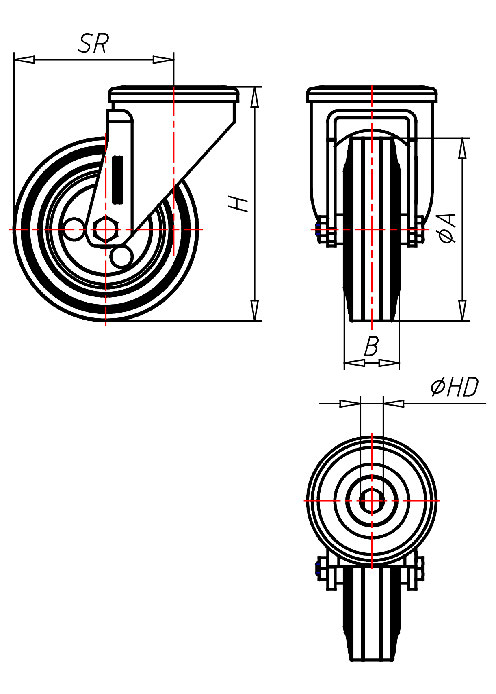

XR 80 ELBX

Stainless Steel Series XR, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 80x25

Stainless Steel Series XR, Wheel EL

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 74
  • Radlagerung Roller bearing

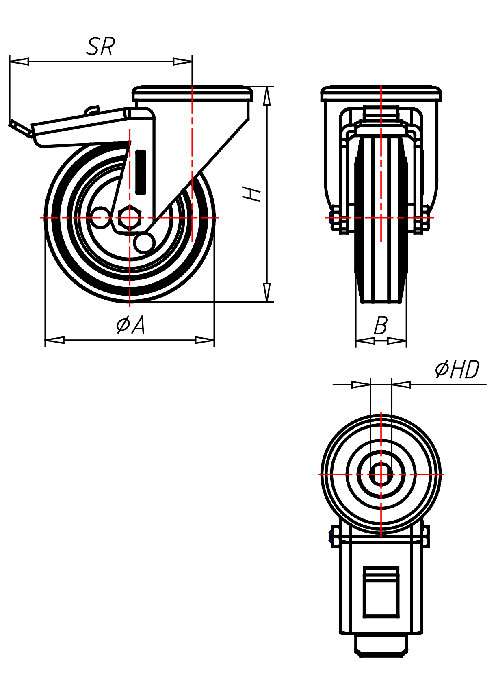

XRT 80 ELBX

Stainless Steel Series XR, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 80x25

Stainless Steel Series XR, Wheel EL

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 106
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XR 100 ELBX

Stainless Steel Series XR, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel EL

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 88
  • Radlagerung Roller bearing
XRT 100 ELBX

Stainless Steel Series XR, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 100x30

Stainless Steel Series XR, Wheel EL

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 128
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 108
  • Radlagerung Roller bearing
XRS 125 ELBX

Stainless Steel Series XR, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XR, Wheel EL

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 113
  • Radlagerung Roller bearing
XRST 125 ELBX

Stainless Steel Series XR, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 125x38

Stainless Steel Series XR, Wheel EL

Technische Daten

  • Tragkraft kg 100
  • Bauhöhe H mm 160
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 140
  • Radlagerung Roller bearing
XR 200 ELBX

Stainless Steel Series XR, Wheel EL

Swivel castor Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel EL

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 161
  • Radlagerung Roller bearing
XRT 200 ELBX

Stainless Steel Series XR, Wheel EL

Swivel castor with total lock Wheel-∅ x width [mm]: 200x50

Stainless Steel Series XR, Wheel EL

Technische Daten

  • Tragkraft kg 205
  • Bauhöhe H mm 240
  • Loch-Ø HD mm 12,5
  • Störkreisradius SR mm 168
  • Radlagerung Roller bearing
