Stainless Steel Series 310XR, Wheel G

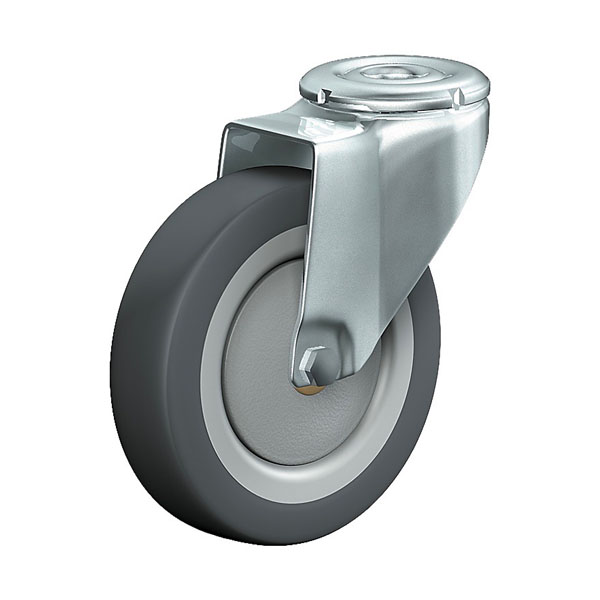

  • Swivel Castor Stainless Steel Series 310XR, Wheel G

    SWIVEL CASTOR

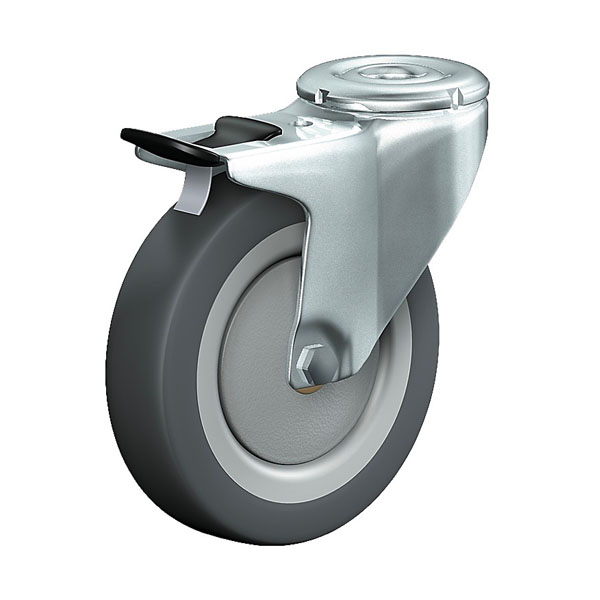

  • Swivel Castor With Total Lock Stainless Steel Series 310XR, Wheel G

    SWIVEL CASTOR WITH TOTAL LOCK

Select the required versions in order to show them already filtered in the following table.

Stainless Steel Series 310XR, Wheel GEdelstahl

PDF product sheet
  • max 50 kg
  • -20 °C - +60 °C
  • 50-100 mm
  • ++
    swivels easily
  • ++
    wear resistant
  • +
    shock proof
  • +++
    floor protective
  • +++
    weather proof
  • Swivel Castor Stainless Steel Series 310XR, Wheel G

    Swivel Castor

  • Swivel Castor With Total Lock Stainless Steel Series 310XR, Wheel G

    Swivel Castor With Total Lock

Select the required versions in order to show them already filtered in the following table.

Description

Floor condition

  • PVC Boden

    PVC/Concrete

  • Fliesenboden

    Tiles

  • Asphaltboden

    Asphalt

  • Parkettboden

    Parquet flooring

  • Hindernisse am Boden

    Obstacles

Advantages

  • non-marking - floor protective
  • silent in motion
  • good running performance
  • resistant to diluted acids

Applications

  • Mechatronik
  • Wet environments
  • Health-Professionals

Material

Material

Standard rubber tyre grey
Nylon rim

Fork material

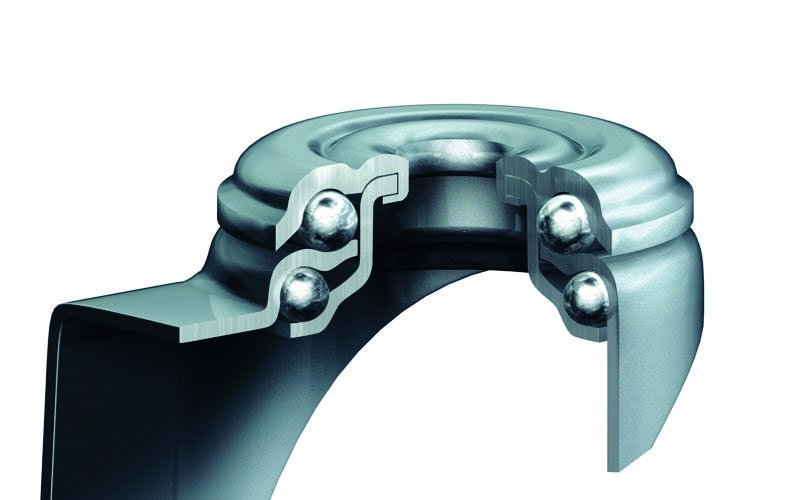

Finish: Polished stainless steel swivel fork with single bolt hole, large double ball bearing – Ø 46 mm, revited, wheel axle bolted and locked, adjustable total lock

Documents/CAD

Cadenas Partcommunity-Portal

For a PDF with the technical description and detailed 3D CAD plans, please select the desired version. You can then download a PDF with the technical description or access detailed 3D CAD plans via our Cadenas Partcommunity portal.

The models have been carefully designed and validated for correctness. However, we take no responsibility for any incorrect or incomplete data.

Select version

Select version

6 of 6 items in this series are displayed.

Article number Articel type Price € QTY

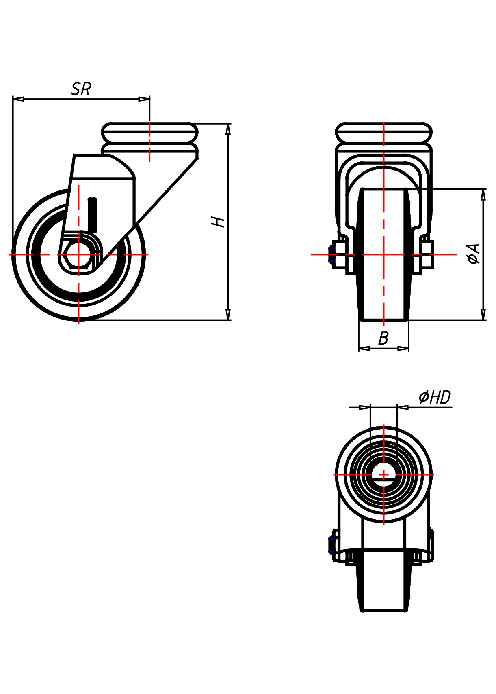

310X RÜ 50 G

Stainless Steel Series 310XR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 50x18

Stainless Steel Series 310XR, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 75
  • Loch-Ø HD mm 10,2
  • Störkreisradius SR mm 53
  • Radlagerung Nylon plain bearing
312X RÜ 50 G

Stainless Steel Series 310XR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 50x18

Stainless Steel Series 310XR, Wheel G

Technische Daten

  • Tragkraft kg 40
  • Bauhöhe H mm 75
  • Loch-Ø HD mm 10,2
  • Störkreisradius SR mm 85
  • Radlagerung Nylon plain bearing
310X RÜ 75 G

Stainless Steel Series 310XR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 75x25

Stainless Steel Series 310XR, Wheel G

Technische Daten

  • Tragkraft kg 45
  • Bauhöhe H mm 103
  • Loch-Ø HD mm 10,2
  • Störkreisradius SR mm 69
  • Radlagerung Nylon plain bearing
312X RÜ 75 G

Stainless Steel Series 310XR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 75x25

Stainless Steel Series 310XR, Wheel G

Technische Daten

  • Tragkraft kg 45
  • Bauhöhe H mm 103
  • Loch-Ø HD mm 10,2
  • Störkreisradius SR mm 85
  • Radlagerung Nylon plain bearing
310X RÜ 100 G

Stainless Steel Series 310XR, Wheel G

Swivel castor Wheel-∅ x width [mm]: 100x25

Stainless Steel Series 310XR, Wheel G

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 125
  • Loch-Ø HD mm 10,2
  • Störkreisradius SR mm 86
  • Radlagerung Nylon plain bearing

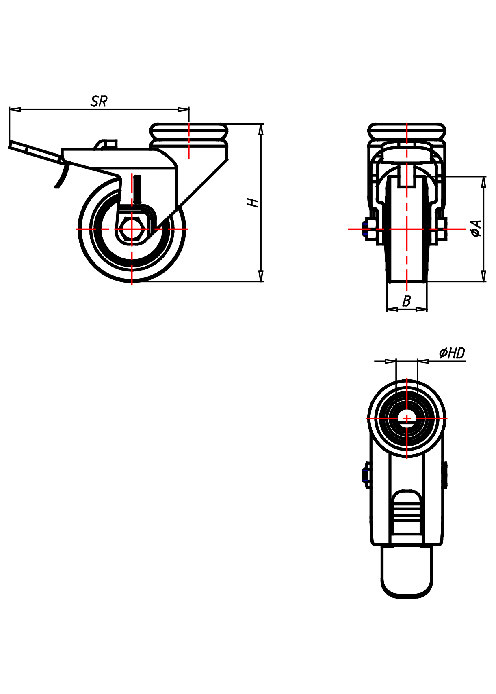

312X RÜ 100 G

Stainless Steel Series 310XR, Wheel G

Swivel castor with total lock Wheel-∅ x width [mm]: 100x25

Stainless Steel Series 310XR, Wheel G

Technische Daten

  • Tragkraft kg 50
  • Bauhöhe H mm 125
  • Loch-Ø HD mm 10,2
  • Störkreisradius SR mm 86
  • Radlagerung Nylon plain bearing

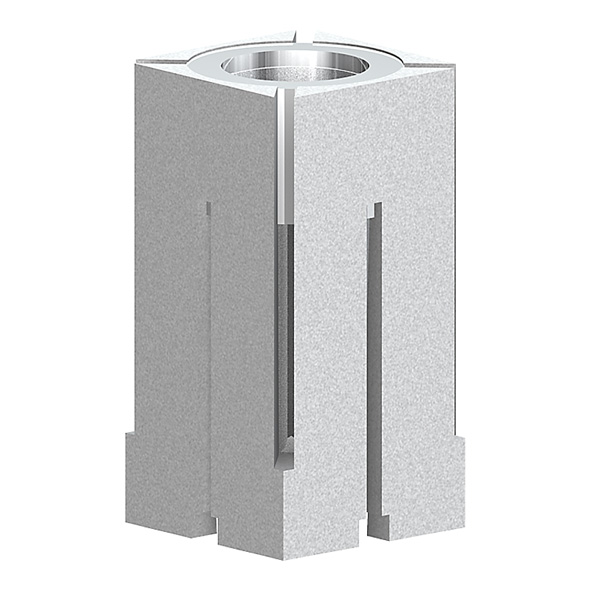

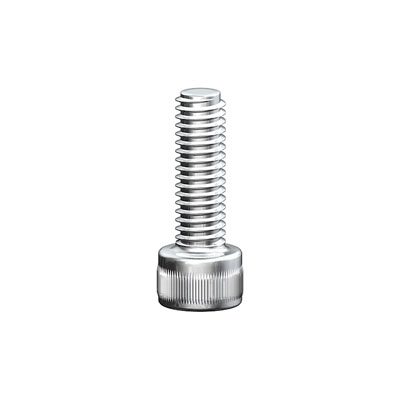

Suitable accessories
